ISO 9001:2015 Certified Manufacturer

Borosilicate Glass Reactors for Pharma & Research

Jacketed, single-wall, and pressure-rated reactors. 500ml to 200L. Custom fabrication in 7–14 days. Complete assembly — reactor, stirrer, condenser, and lid supplied together.

200L
Max Capacity
ISO
9001:2015
7–14
Days Delivery
MOQ
1 Piece
All Products
PTFE stirrer, GL lids & bottom valve included
Pilot-scale to industrial batch — same factory
Custom neck configurations on request

Quick Reactor Quote

Fill below → opens WhatsApp with your details pre-filled

No spam · Reply within 2 business hours

ISO 9001:2015 Certified Manufacturer●
Jacketed & Single-Wall Reactors●
500ml to 200L Capacity●
Custom Fabrication in 7–14 Days●
PTFE Stirrer Included●
Hyderabad — Pan-India Shipping●
MOQ: 1 Piece●
ISO 3585 Borosilicate Glass●
ISO 9001:2015 Certified Manufacturer●
Jacketed & Single-Wall Reactors●
500ml to 200L Capacity●
Custom Fabrication in 7–14 Days●
PTFE Stirrer Included●
Hyderabad — Pan-India Shipping●
MOQ: 1 Piece●
ISO 3585 Borosilicate Glass●
Reactor Range

Glass Reactors for Every Scale

From 500ml pilot-scale to 200L industrial batch — all manufactured in-house in Hyderabad.

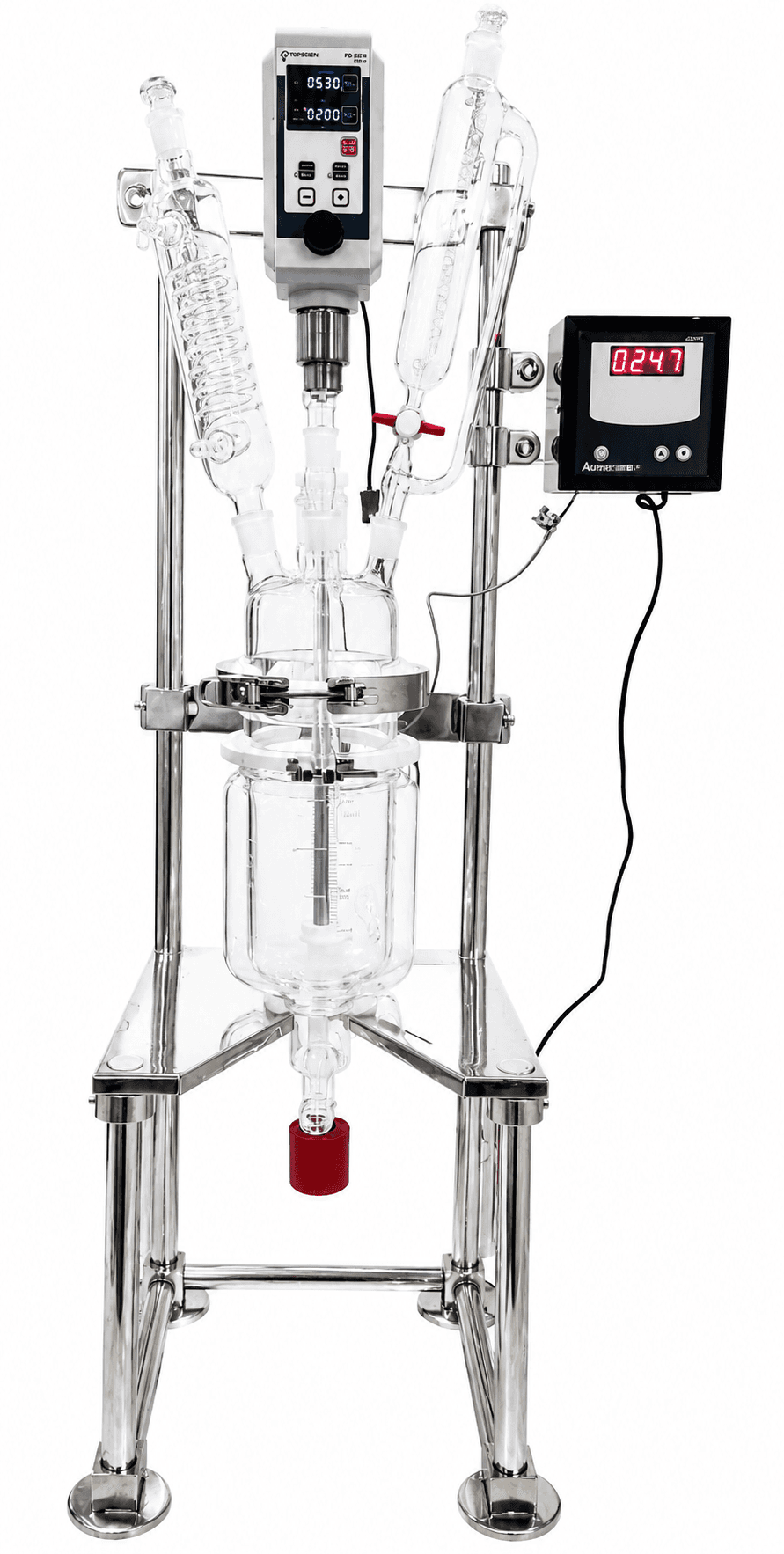

Jacketed Glass Reactor
PharmaChemicalR&D

Jacketed Glass Reactor

📐 1L – 200L

Double-wall borosilicate 3.3 reactor with jacket for precise heating and cooling media circulation (water, oil, or glycol). Supplied complete with PTFE anchor stirrer, multi-neck GL-port lid, bottom outlet valve, and Liebig condenser.

Get Quote →

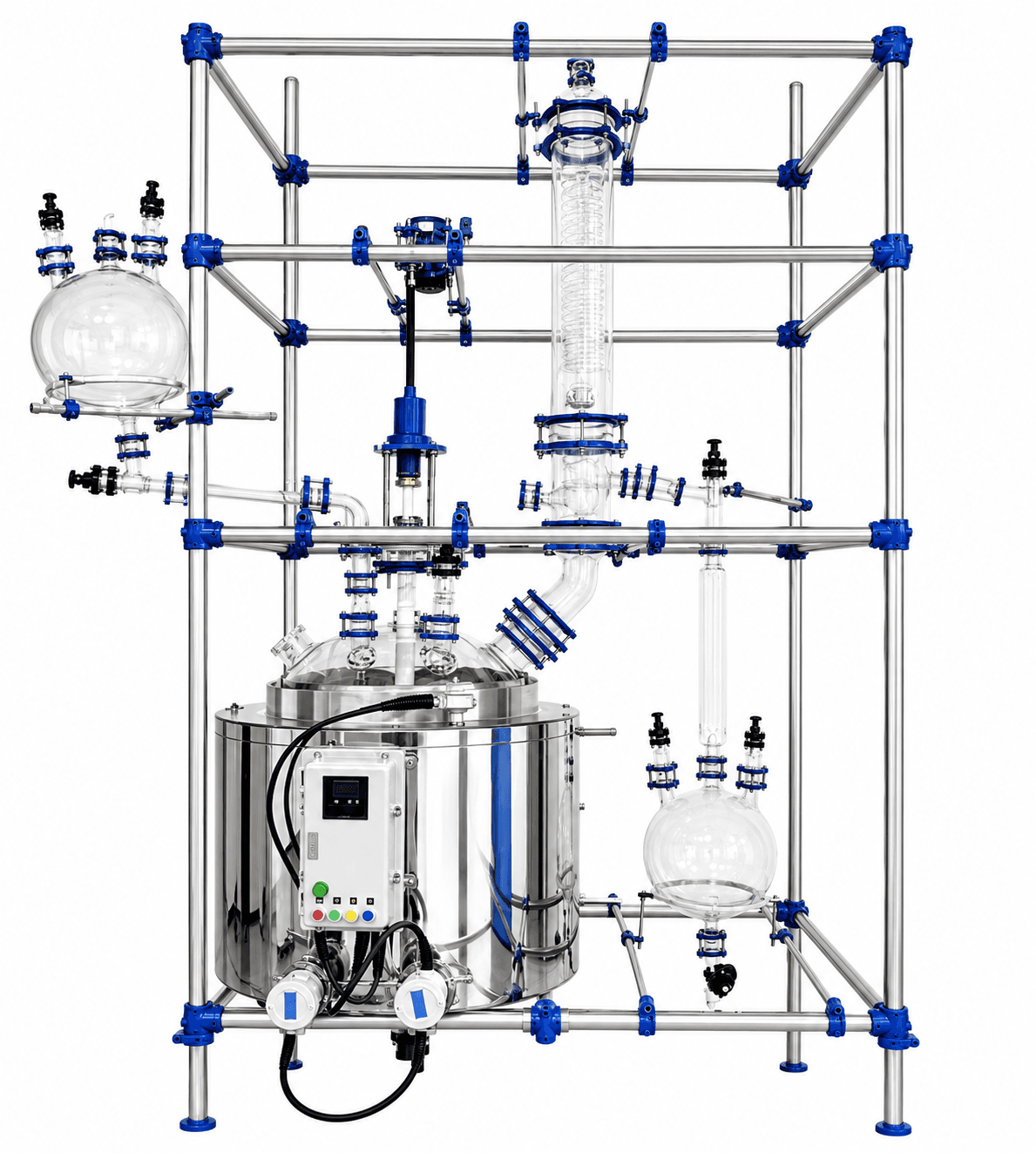

All Glass Reactor Assembly
Pilot PlantIndustrial

All Glass Reactor Assembly

📐 1L – 200L

Complete industrial-scale glass reactor assembly on SS304 frame. Includes jacketed reactor vessel, overhead stirrer, reflux condenser, addition funnel, thermometer port, and inert-gas inlet. Ready for pilot plant and batch production.

Get Quote →

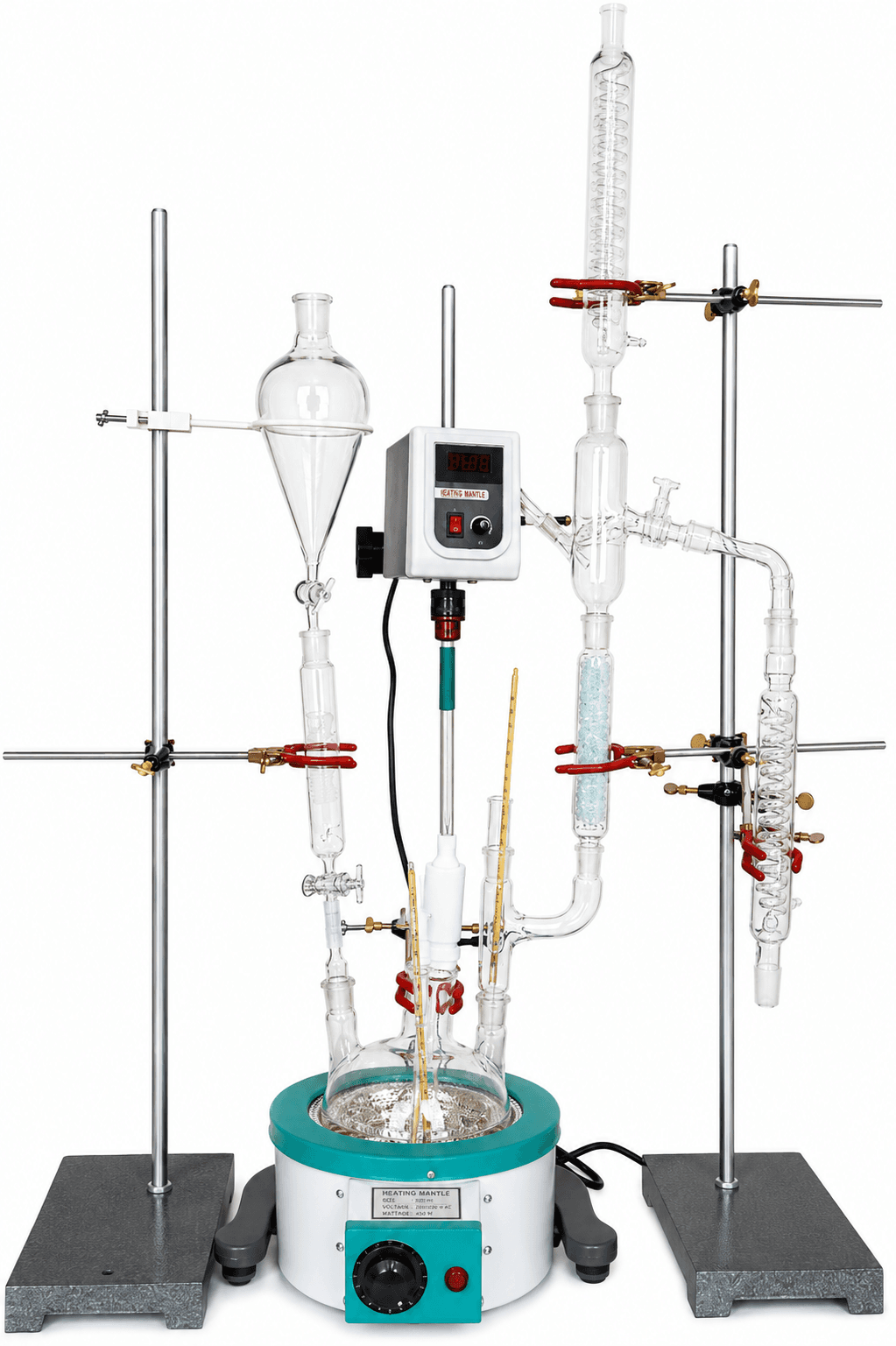

Glass Distillation Assembly
LabEssential OilsChemical

Glass Distillation Assembly

📐 1L – 200L

Full distillation assembly set with borosilicate flask, heating mantle, Liebig condenser, separating funnel, receiver flask, and SS support stand. Suitable for simple and fractional distillation in labs and small-scale production.

Get Quote →

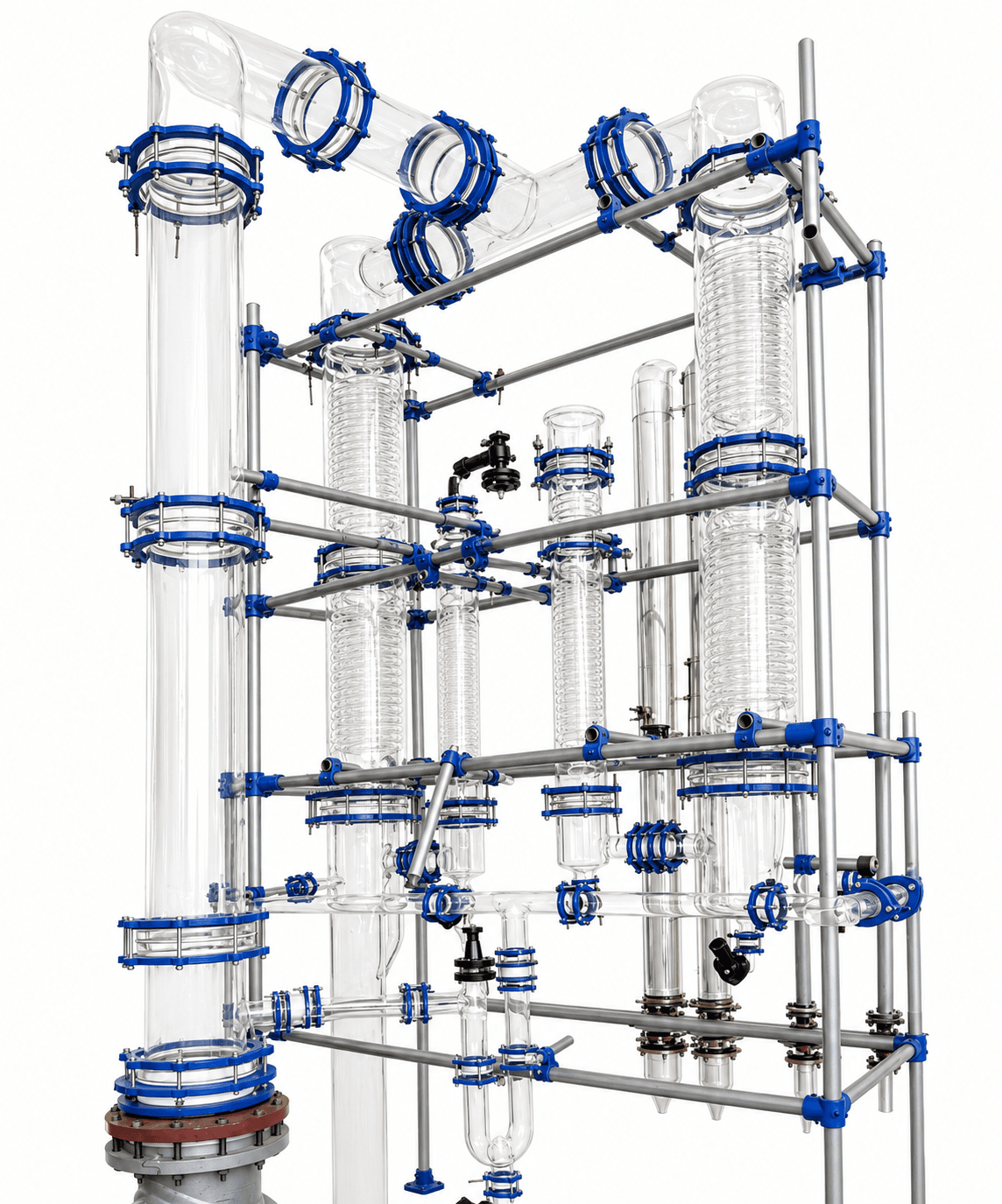

GLR Glass Condenser Assembly
IndustrialPharmaChemical

GLR Glass Condenser Assembly

📐 Custom sizes

Large-scale glass lined reactor (GLR) condenser column assembly. Borosilicate coil and shell condensers with SS304/SS316 clamp fittings. Designed for industrial distillation trains and continuous process plants.

Get Quote →

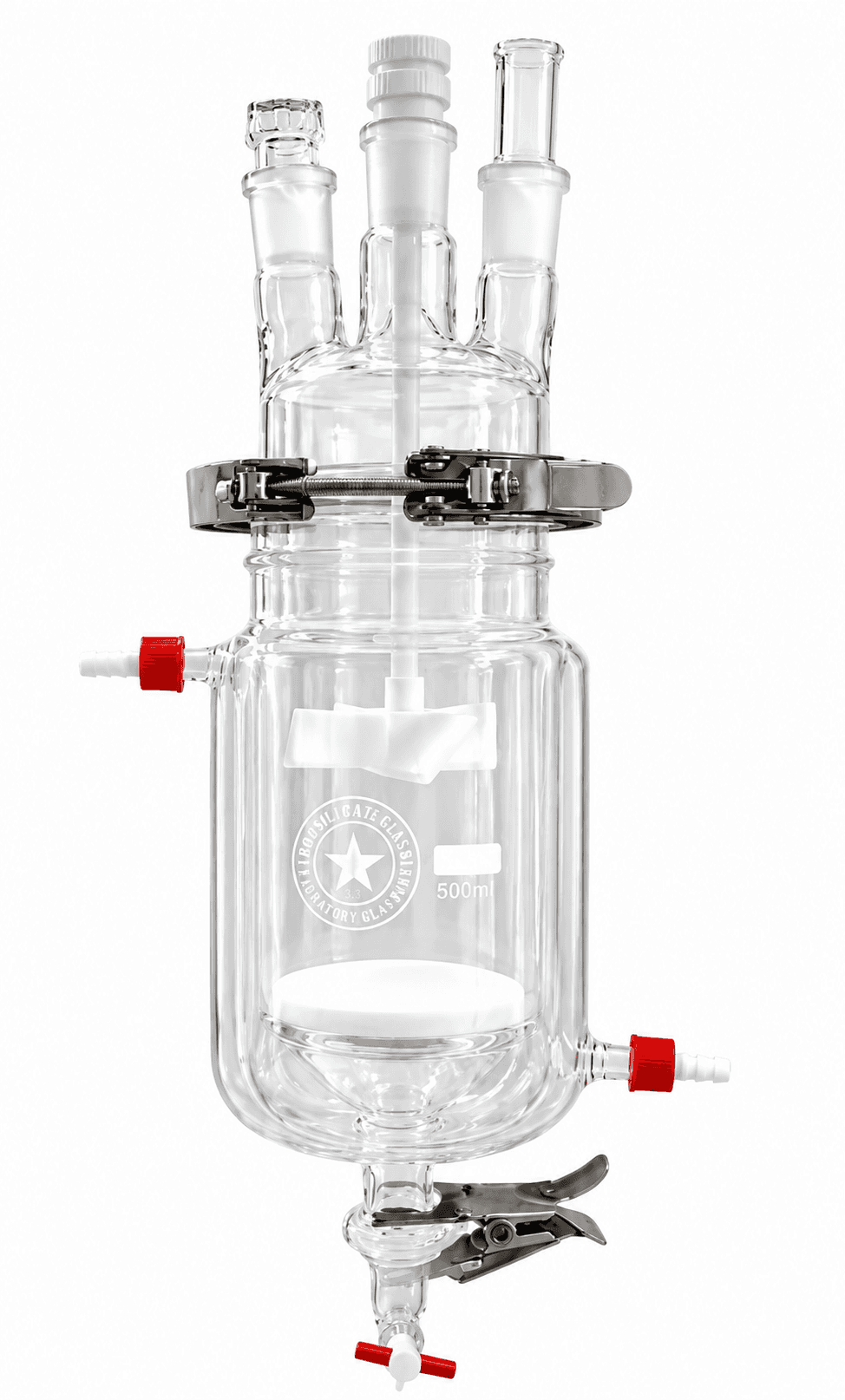

Jacketed Reactor Vessel
R&DLabCustom

Jacketed Reactor Vessel

📐 500ml – 50L

Standalone jacketed borosilicate reactor vessel with SS304 clamp lid, multi-neck configuration, bottom outlet PTFE valve, and jacket inlet/outlet ports. Ideal as a replacement vessel or for custom reactor system builds.

Get Quote →
Specifications

Built to Industrial Standards

Every reactor is fabricated from ISO 3585 borosilicate 3.3 glass and pressure-tested before dispatch. We supply complete assemblies — no sourcing stirrers or clamps separately.

Complete assembly — reactor, stirrer, condenser, lid
Tested and calibrated before dispatch
GST invoice issued with every order
WhatsApp support during fabrication
Custom ports, sizes, and configurations welcome
Glass GradeISO 3585 Borosilicate 3.3
Capacity Range500ml — 200 Litres
Operating Temperature-40°C to +280°C
Stirrer TypePTFE Anchor / Propeller (supplied with unit)
Lid / Port Config3-neck to 6-neck GL lids; custom on request
Jacket ConnectionsGL 18 inlet & outlet (standard)
Jacket MediaWater · Oil · Glycol-water mixture
Clamp MaterialSS304 clamps with PTFE gaskets
Bottom ValvePTFE plug valve (standard on all jacketed models)
Frame / StandSS304 rod frame with adjustable height
Lead Time7–14 working days (standard sizes)
MOQ1 piece — no minimum order quantity
Industries Served

Who Uses Our Reactors

Pharmaceutical

API synthesis, hydrogenation, crystallisation, and bulk drug manufacturing.

Research & Development

University labs, CSIR institutes, and private R&D centres requiring pilot-scale glassware.

Chemical Industry

Batch reactions, polymerisation, and specialty chemical production.

Essential Oils & Botanicals

Steam distillation, solvent extraction, and cold-press operations.

Petroleum & Petrochemical

Catalyst testing, refinery-scale pilot studies, and lube-oil blending.

Nutraceuticals

Extraction, concentration, and formulation of plant-based actives.

Certifications & Compliance

Quality you can verify — not just claim.

ISO
ISO 9001:2015
Quality Management System
QMS-SSGI-MMXXVI-24407
ISO
ISO 3585
Borosilicate Glass Standard
Borosilicate 3.3
MSME
MSME Registered
Udyam Certificate
UDYAM-TS-02-0059153
GST
GST Registered
Valid GST invoice issued
36CYEPS8514D1ZA
FAQ

Glass Reactor Questions Answered

Common questions from pharma, R&D, and chemical buyers.

Have a specific reactor requirement?

Chat on WhatsApp
Request for Quotation

Get a Reactor Quote

Tell us your requirement and we will respond with a detailed quote within 2 business hours.

Contact Details
Reactor Requirements

Your data is secure · We respond within 2 business hours
